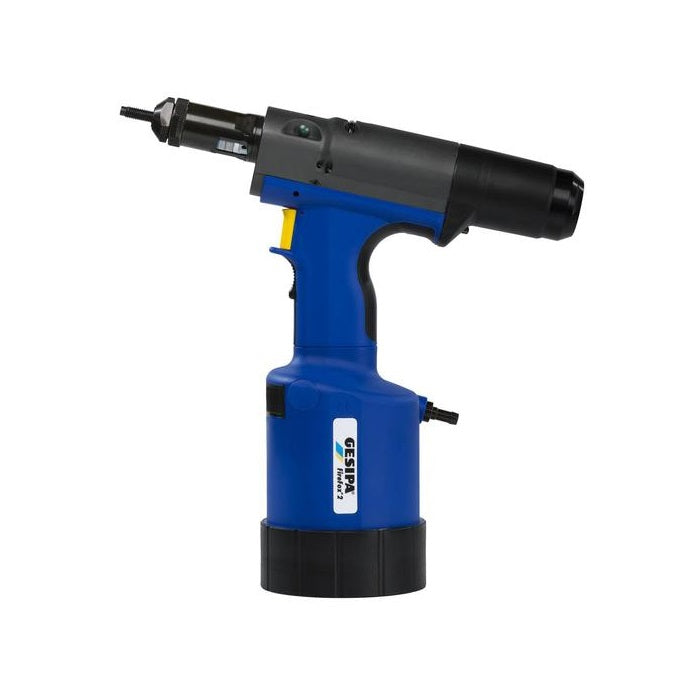

Article number: 1458086
TECHNICAL DATA
Weight: 2.4 kg
Adjustable stroke,max: 10mm
Adjustable traction force, max: 22 kN at 6 bar
Operating air pressure: 5-7 bar
Air hose connection: 6 mm Ø (1/4’’)
Air consumption: approx. 2 to 4 ltr. per rivet nut (depending on nut size)
WORKING RANGE
Sets blind rivet nuts from M4 to M10 in all materials
as well as M12 in aluminium and steel.
SCOPE OF DELIVERY
Threaded mandrel and nosepiece M6
(in working position)
Threaded mandrel and nosepiece M4, M5
and M8 (in magazine)
2x double open ended wrenches SW 24/27
1x hexagon screw driver SW 3
1x oil refill bottle with hydraulic oil 100 ml
1x oil refill can
Quick setting guide
Colour code card
Operating instructions with spare parts lis
ADVANTAGES
• Stroke- or setting-force adjustment possible
• Fast and precise setting force adjustment with
colour-coded setting ring
• New stroke scale quick and easy to set even
under poor light conditions
• Maximum stroke clearly identified by blue
ring on stroke scale (1)
• Throttle plate: Automatic throttle for even faster
and protective setting as from M3 blind rivet nuts
• PTFE (Teflon®) seal. PTFE seal and optimised pilot
MADE IN GERMANY
Tools and fasteners that are
Made in Germany. At our three
German locations, we manufacture
top-quality blind rivets
and setting tools for international
demand.
The setting head is the part of the blind rivet nut that rests on the visible surface of the component. The user can choose between the following variants: A blind rivet nut with a dome head provides a large contact surface on the component. If you are looking for minimum overlap of the blind rivet nut, thus allowing the assembly component to rest so it is almost flat, a blind rivet nut with a small head is the ideal option. Finally, there are countersunk blind rivet nuts, which are perfect for flat surfaces in countersunk holes. The shank is the part of the blind rivet nut that deforms during the setting procedure and fixes the blind rivet nut in the component. What is known as the closing head is formed in this process. The user can choose from the following shank variants: a round shank, a splined shank and a polygon shank (hexagon or square).
It is down to the customer to select the material used.Specific to the application, you can use blind rivet nuts made from steel, aluminium, monel or stainless steel.
